●JR.FG系列通风式灭菌柜利用洁净蒸汽和空气混压灭菌的工艺模式，可以很好地控制设备和产品的压力平衡和反压保 护，在需要保持和保护物品外形和密封状态的灭菌领域获得了广泛的应用和良好的效果。强制对流风扇和导流风板结构使 得腔体内部非饱和蒸汽均匀混合，确保灭菌温度均匀性，设备内部设有冷却盘管，产品的冷却和干燥是通过将冷却水引入 冷凝盘管将灭菌室内的混合气体冷凝。冷空气流过产品将产品冷却，同时产品表面的水渍蒸发，最后实现冷却和干燥的目 的。针对某些干燥要求高的品种，更可以增加热风干燥功能。
●该系列通风式灭菌器主机为卧式矩形结构，304或316L不锈钢内胆、全不锈钢拉丝板外罩，具有标准GMP验证接口。
●工业控制系统PLC+HMI具有标准的“用户管理、数据存储、配方管理”功能，灭菌过程可追溯、具有独立的数据记录 装置和工控系统相互对照确保数据准确性。温度时间和F0的双重控制，符合各国药典要求。
●JR.FG series ventilation sterilizer uses the process mode of clean steam and air mixed pressure sterilization, which can well control the pressure balance and reverse pressure protection of equipment and products, and has obtained a wide range of applications and good results in the sterilization field where it is necessary to maintain and protect the shape and sealing state of items. Cold air flows through the product to cool the product, while the water stains on the surface of the product evaporate, and finally achieve the purpose of cooling and drying. For some varieties with high drying requirements, hot air drying function can be added .

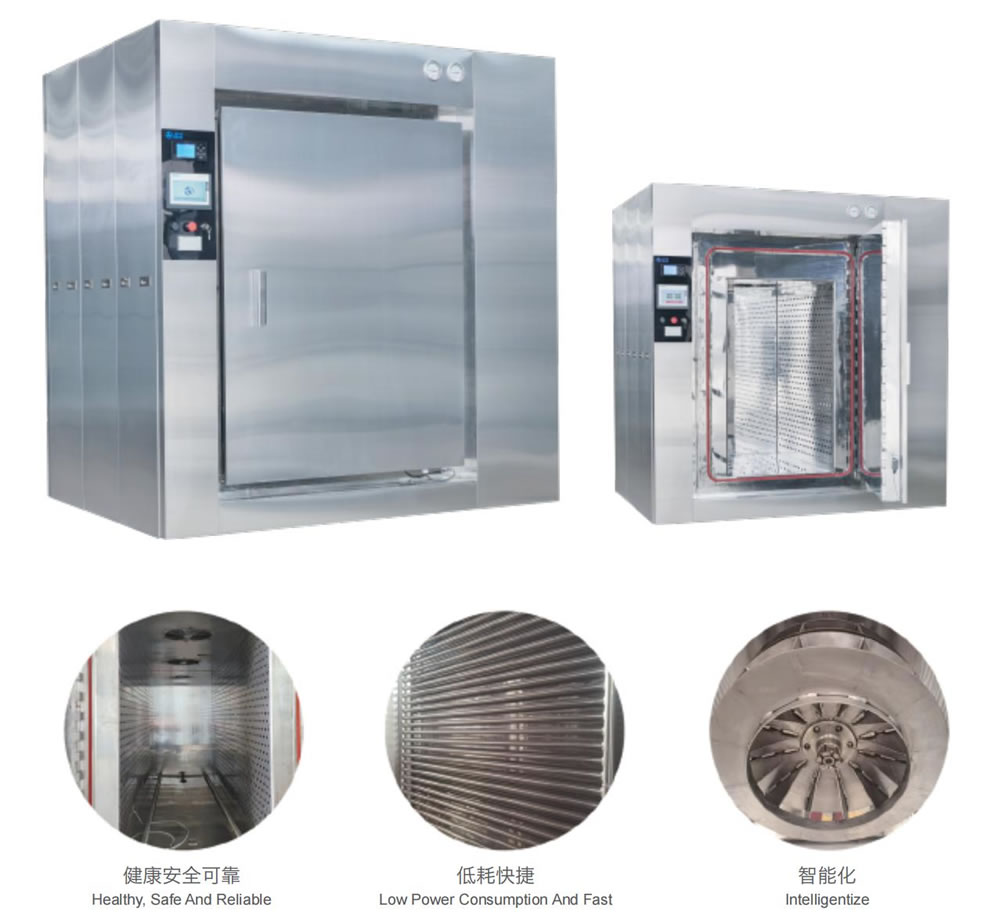

● The main machine of this series of ventilated sterilizer is horizontal rectangular structure, 304 or 316L stainless steel chamber, all stainless steel wire drawing plate cover, with standard GMP verified interface.
● Industrial control system PLC+HMI has standard "user management, data storage, formula management" functions, the sterilization process can be traced, with an independent data recording device and industrial control system to ensure data accuracy. Dual control of temperature, time and F0, in line with the requirements of national pharmacopoeia.
